| 規(guī)格(英寸) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| 規(guī)格代號 | 2 | 3 | 4 | 6 | 8 |
| 額定壓力( Mpa ) | |||||
| 黃銅 | 7 | 7 | 7 | 7 | 7 |
| 不銹鋼 | 13.8 | 13.8 | 10.4 | 10.4 | 10.4 |
| 額定流量(L/min ) | 11.5 | 23 | 45.5 | 45.5 | 45.5 |
| 溫度范圍(丁腈橡膠) | -20℃?~+100℃ | ||||
| 溫度范圍(氟橡膠) | -20℃?~+180℃ |

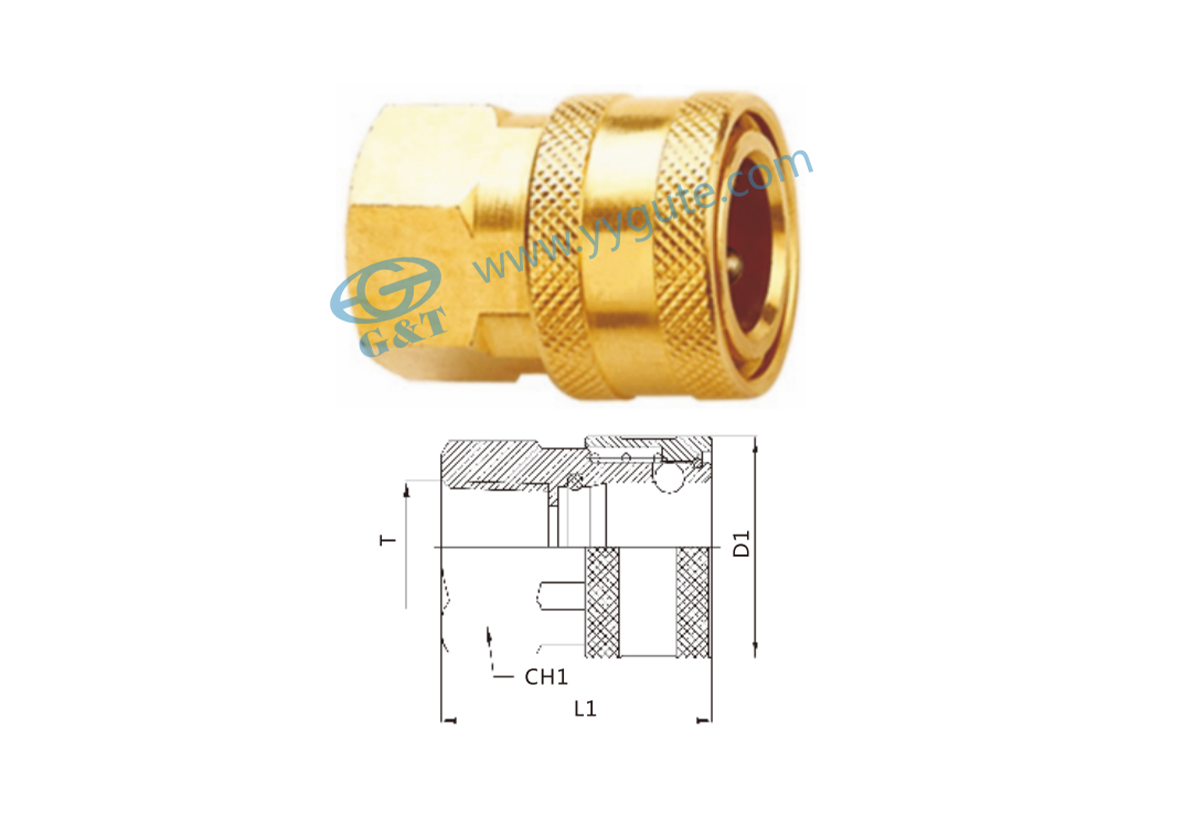

| 編號 | L | D1 | CH1 | T | ||
| GT-K2-02B-SF | 32 | 24 | 19 | ZG1/4 | G1/4? | NPT1/4 |
| GT-K2-03B-SF | 36 | 28.5 | 23 | ZG3/8 | G3/8? | NPT3/8 |
| GT-K2-04B-SF | 42.5 | 35 | 29 | ZG1/2 | G1/2? | NPT1/2 |
| -06B-SF | 49.5 | 41 | 36 | ZG3/4 | G3/4? | NPT3/4 |
| GT-K2-08B-SF | 59.5 | 58 | 50 | ZG1 | ?G1 | NPT1 |

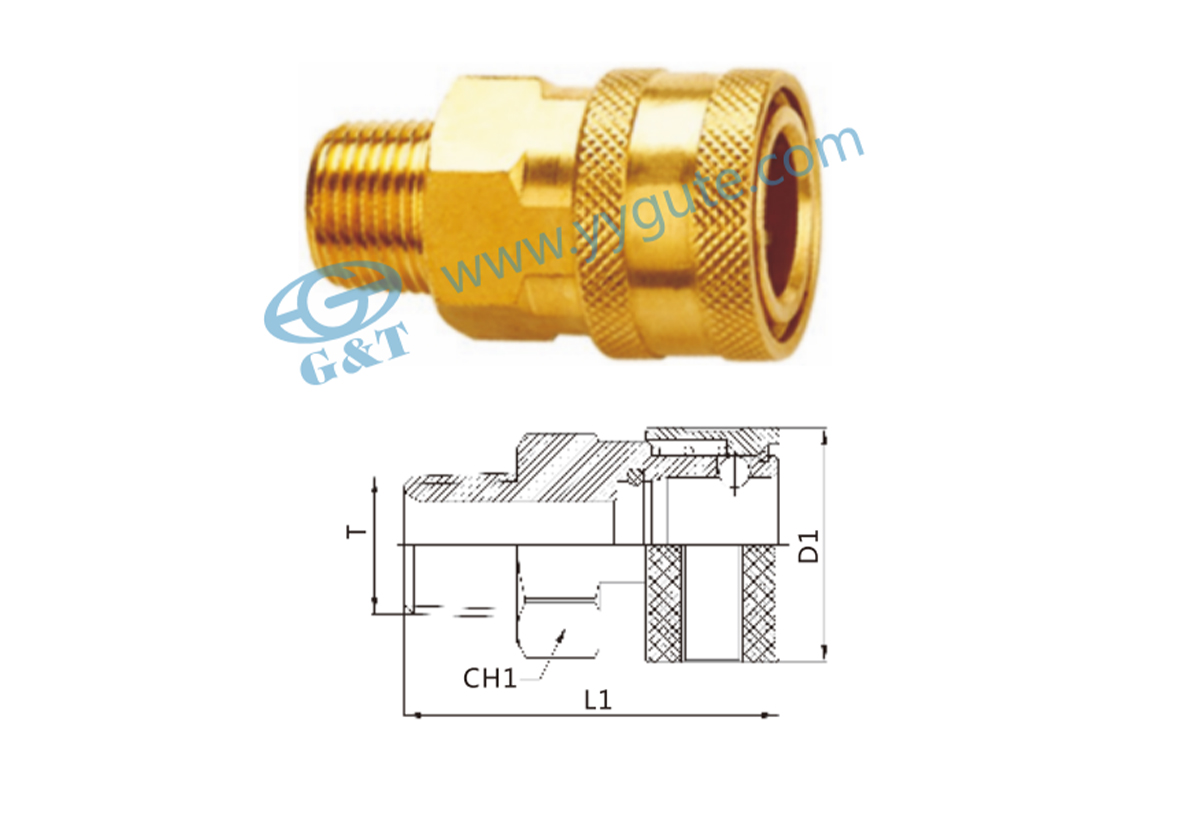

| 編號 | L | D1 | CH1 | T | ||
| GT-K2-02B-SM | 42 | 24 | 19 | ZG1/4 | G1/4? | NPT1/4 |
| GT-K2-03B-SM | 46.5 | 28.5 | 23 | ZG3/8 | G318? | NPT3/8 |
| GT-K2-04B-SM | 56 | 35 | 29 | ZG1/2 | G112 | NPT1/2 |
| GT-K2-06B-SM | 61.5 | 41 | 36 | ZG3/4? | G314 | NPT314 |

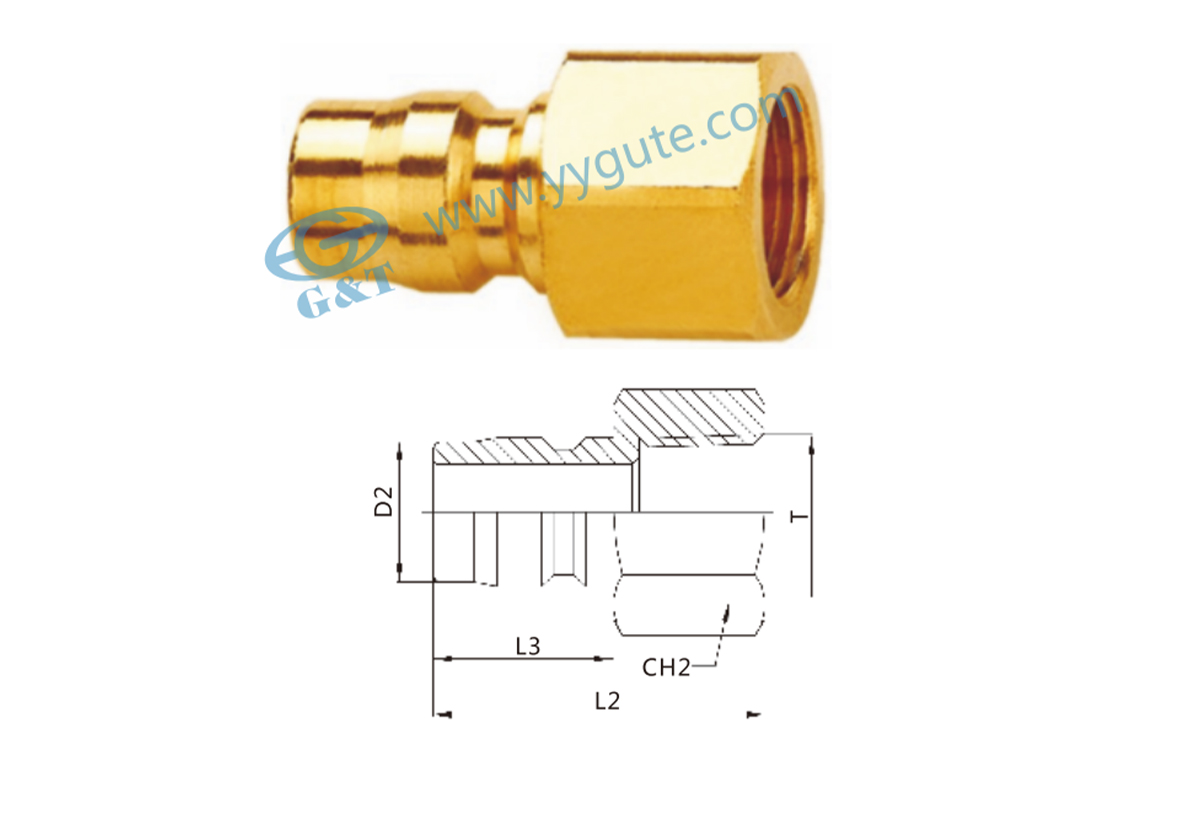

| 編號 | L | L3 | D2 | CH2 | T | ||
| GT-K2-02B-PF | 35 | 18 | 11 | 17 | ZG1/4 | G1/4? | NPT1/4 |
| GT-K2-03B-PF | 38 | 21.2 | 14.2 | 21 | ZG3/8 | G3/8? | NPT3/8 |
| GT-K2-04B-PF | 40 | 24.5 | 19 | 29 | ZG1/2 | G1/2 | NPT1/2 |
| GT-K2-06B-PF | 50 | 28 | 23.5 | 32 | ZG3/4 | G3/4 | NPT3/4 |

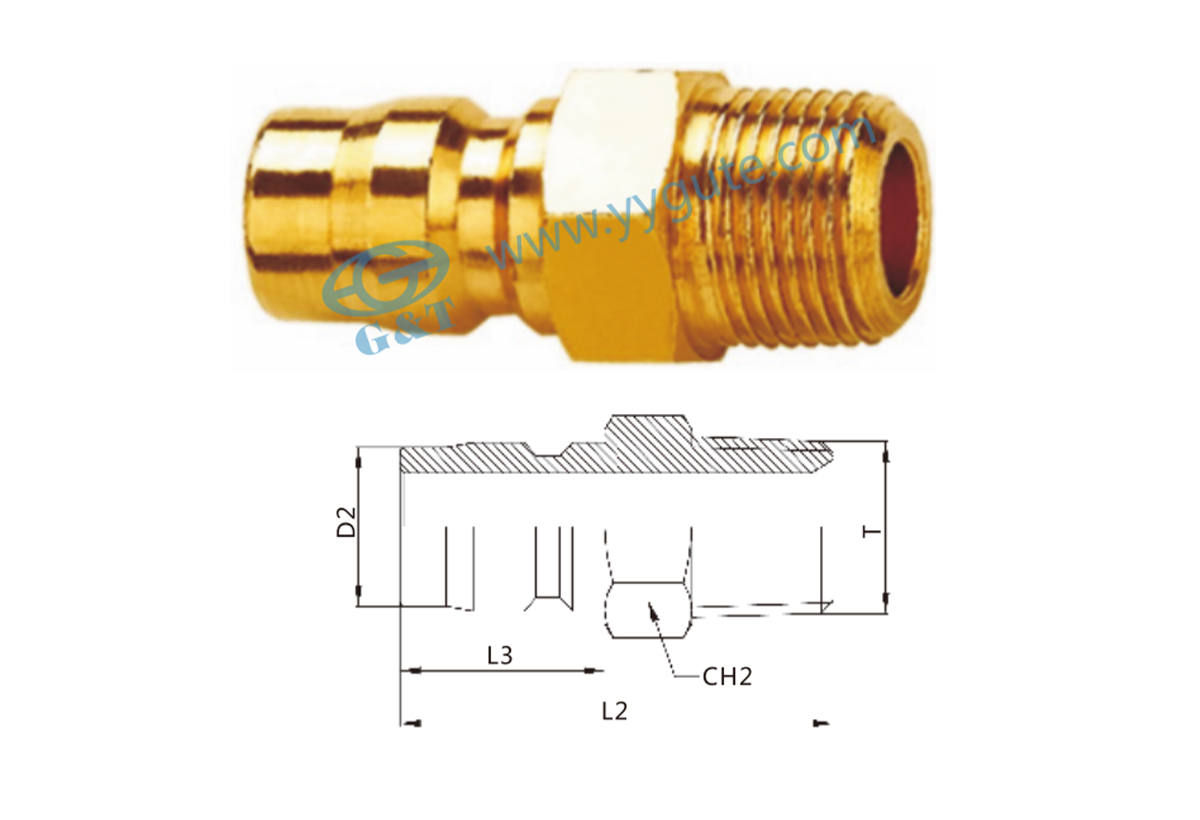

| 編號 | L | L3 | D2 | CH2 | T | ||
| GT-K2-02B-PM | 38 | 18 | 11 | 14 | ZG1/4 | G1/4? | NPT1/4 |
| GT-K2-03B-PM | 43 | 21.2 | 14.2 | 19 | ZG3/8? | G3/8 | NPT3/8 |
| GT-K2-04B-PM | 52 | 24.5 | 19 | 23 | ZG1/2 | G1/2? | NPT1/2 |
| GT-K2-06B-PM | 56 | 28 | 23.5 | 29 | ZG3/4? | G3/4 | NPT3/4 |
| GT-K2-08B-PM | 73 | 36 | 34.5 | 41 | ZG1 | G1 | NPT1 |
